Double DIN, Kenwood

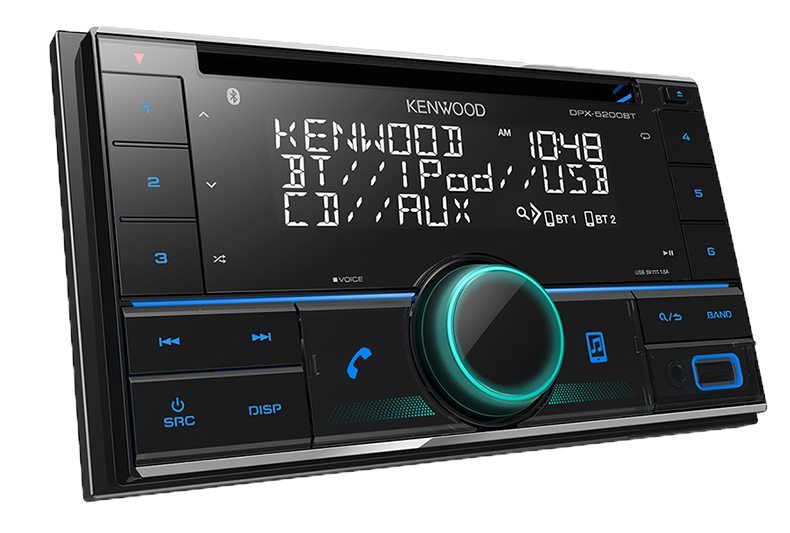

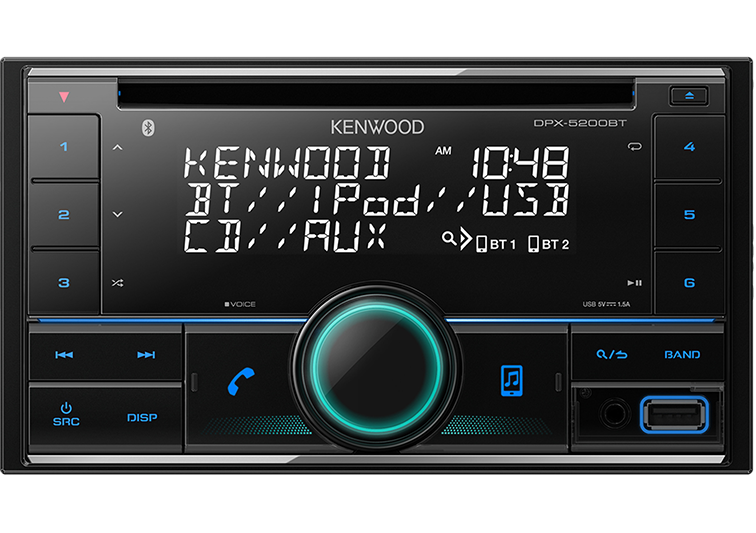

Kenwood DPX-5200BT Double-din CD-Receiver with Built-in Bluetooth
or 4 fortnightly payments of $65 with
More info
- 420 Segment 3 Line Text Display
- Built-in Bluetooth
- Direct Bluetooth Control Key
- Multi-Color Illumination
- 13 Band EQ & DTA
- Front USB & AUX IN
- 3 Preouts 3.5V
Music Mix – High Quality Music streaming x 5 devices
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
KENWOOD Remote App Compatible
Download the free app “KENWOOD Remote“.You can change audio sources or adjust audio settings like
“Time Alignment” or “13-Band EQ” from your smartphone.
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
$259
CD Player – Yes
Key Illumination / Volume knob Illumination/ LCD・LED Backlight –
//
Built-in Bluetooth2 – Phone Hands Free / Music Mix / KENWOOD Remote App
USB Terminal – x 1
Audio Decoder – FLAC / WAV / AAC / MP3 / WMA
Equalizer / Digital Time Alignment / 3-Way X’Over – 13 Band / Yes / Yes
Audio Preout – 3.5V / 3Preouts
Remote Controller – Included
Playable USB Files
Compatible with a broad range of audio file formats such as FLAC and WAV, to MP3, WMA and AAC.
| Music Codec | Playable up to |
|---|---|
| FLAC | ～96kHz / ～24bit |
| WAV | ～44.1kHz / ～16bit |
| MP3 | ～48kHz / ～320kbps |
| WMA | ～48kHz / ～192kbps |
| AAC | ～96kHz/ ～576kbps |
Multicolor Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.
