Overview

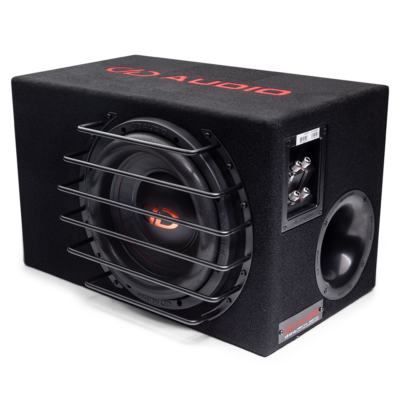

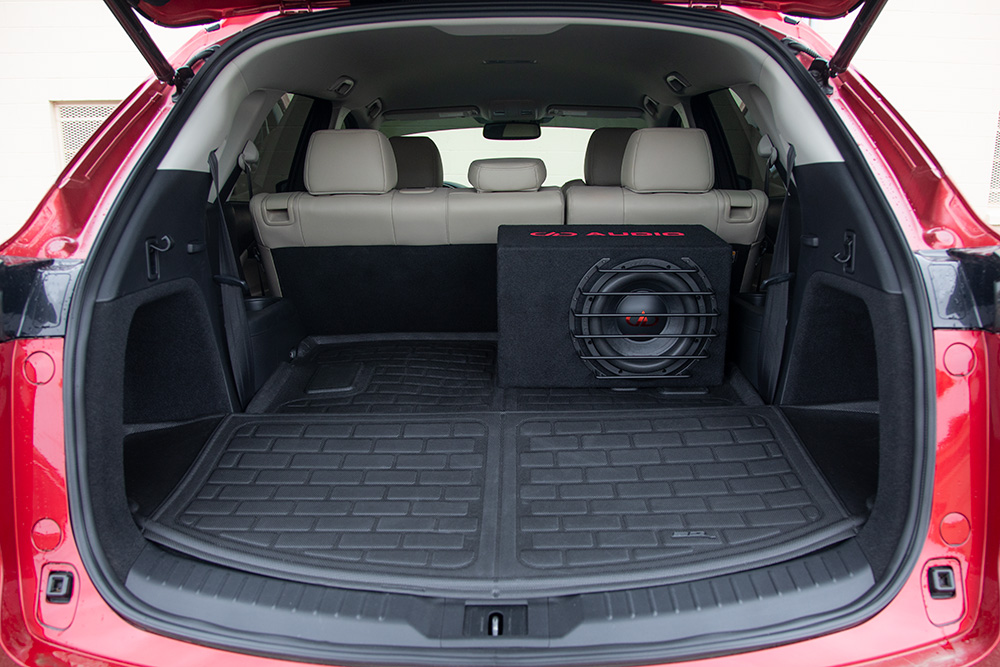

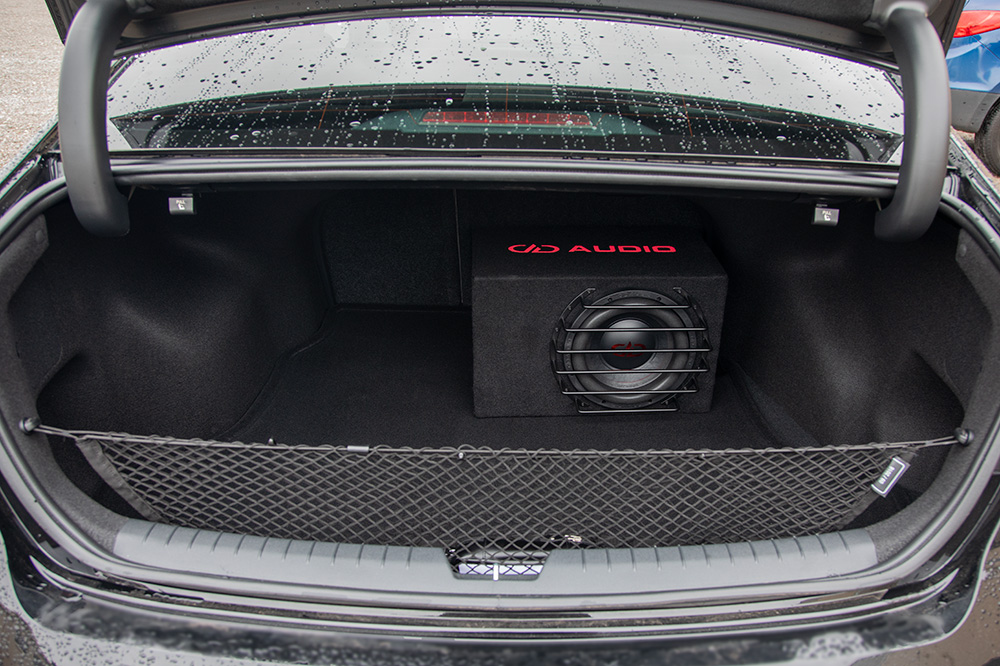

The LE-M Enclosures were all designed using our tried and true DdBox System. The cabinets are built sturdy using MDF with fully sealed seams, and feature tuned ports designed to maximize output and minimize air turbulence at higher volumes. We loaded them with a high-efficiency subwoofer built specifically for the LE-M Series. The subs boast a powerful double stack motor, and the same high-temperature voice coils other brands use in their top of the line models. The LE-Series enclosures provide an affordable world class subwoofer set-up for virtually any application. Proving you don’t have to sacrifice sound just because you use your trunk for more than speakers.
Specifications
The 500 series is one of the best performing subs you can find in its power class. With a highly efficient design, the 500 series can easily be driven to high output levels on as little as 150-400 Watts. The 500s are very versatile subs with their?laminated double layer poly cotton spider allows them to work well in sealed enclosures, and its double stack magnet provides the extra energy needed for vented enclosures applications.
500 Series Features:
| MODEL | 512C | |||
| Driver Size – in | 12 | |||
| Power Band – Watts | 150 – 400 | |||
| Burst Power – Watts | 1200 | |||
| VCD – in | 2 | |||
| Impedance | D2 / D4 | |||
| Sd – in | 10 | |||
| Fs – Hz | 36.34 | |||
| Qms | 6.582 | |||
| Qes | 0.840 | |||
| Qts | 0.745 | |||
| Vas – cu ft | 1.194 | |||
| Xmech – mm | 64 | |||
| Xmax – mm | 11 | |||
| Cutout Diameter – in | 11.125 | |||
| Mounting Depth – in | 5.688 | |||
| Motor Diameter – in | 6 | |||
| Driver Displacement – cu ft | 0.09 | |||
| Shipping Weight – lbs | 15 | |||
| Sealed Enclosure – cu ft | 0.5 – 1.0 | |||
| Ported Enclosure – cu ft | 1.75 – 2.75 |
| MODEL | 812 | ||
| Driver Size – in | 12 | ||
| Power Band – Watts | 1000 – 2000 | ||
| Burst Power – Watts | 6000 | ||
| VCD – in | 4 | ||
| Impedance | D1 / D2 | ||
| Sd – in | 10 | ||
| Fs – Hz | 37.68 | ||
| Qms | 5.218 | ||
| Qes | 0.493 | ||
| Qts | 0.451 | ||
| Vas – cu ft | 0.736 | ||
| Xmech – mm | 80 | ||
| Xmax – mm | 18 | ||
| Cutout Diameter – in | 11.25 | ||
| Mounting Depth – in | 7.625 | ||
| Motor Diameter – in | 9.5 | ||
| Driver Displacement – cu ft | 0.23 | ||
| Shipping Weight – lbs | 55.8 | ||
| Sealed Enclosure – cu ft | N/A | ||
| Ported Enclosure – cu ft | 1.75 – 2.75 |
