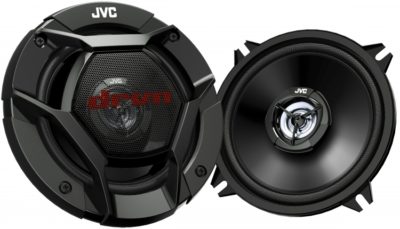

JVC CS-DR522 DRVN 5.25" 2 way speakers 260W peak
,

JVC CS-DR522 DRVN 5.25″ 2 way speakers 260W peak

JVC CS-DR522 DRVN 5.25″ 2 way speakers 260W peak

Rated Power 40W, Mounting depth 44.5mm

$69

JVC CS-DR522 DRVN 5.25″ 2 way speakers 260W peak:

CS-DR522_image

13cm (5-1/4″) 2-Way Speakers / 260W Peak Power / 40W RMS

drvnDR Series Speakers

Balanced Cone Tweeter with Neodymium Magnet

It provides detailed high range and smooth mid range.

Great Factory Replacement

Installable vehicle types are greatly increased thanks to its shorter height.

Horn Ring Sound Enhancer

Improves mid – higher frequency sound character and reproduces life-like sound.

Hybrid Surround

Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.

Small Design Tweeter Cover

Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

Dimensions

CS-DR522

Woofer
Size – 5-1/4″ (13cm)
Type – Cone
Diaphragm – Polypropylene
Surround – Hybrid Surround (Rubber Coated Cloth)
Magnet – Ferrite
Tweeter
Size – 1″ (2.5cm)
Type – Balanced Dome
Diaphragm – Poly-Ether Imide
Magnet – Neodymium
General
Power Handling Capacity (Peak Power) – 260W
Power Handling Capacity (RMS) – 40W
Impedance – 4 ohms
Sound Pressure Level – 88dB / W at 1m
Frequency Response – 95 – 24,000Hz
Weight
Weight (w.Grille) / 1pc – 1.18lbs (0.54kg)
Weight (w/o Grille) / 1pc – 1.04lbs (0.47kg)
Magnet Mass – 5.6oz (160g)
Mounting Depth – 1-3/4″ (44mm)
SKU: CS-DR520 Categories: ,
