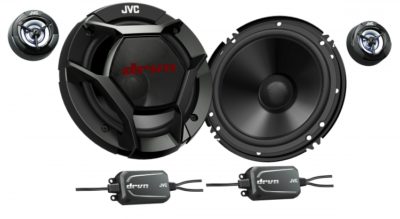

JVC DRVN CS-DR602C 6″ – 6 1/2″ 330w Component speakers:
16cm (6-1/2″) 2-Way Component Speakers / 330W Peak Power / 60W RMS
DR Series Speakers
Balanced Cone Tweeter with Neodymium Magnet
It provides detailed high range and smooth mid range.
Horn Ring Sound Enhancer
Improves mid – higher frequency sound character and reproduces life-like sound.
Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.
Dimensions
-
CS-DR602C
Woofer
- Size – 6-1/2″ (16cm)
- Type – Cone
- Diaphragm – Polypropylene
- Surround – Hybrid Surround (Rubber Coated Cloth)
- Magnet – Ferrite
Tweeter
- Size – 1″ (2.5cm)
- Type – Balanced Dome
- Diaphragm – Poly-Ether Imide
- Magnet – Neodymium
General
- Power Handling Capacity (Peak Power) – 330W
- Power Handling Capacity (RMS) – 60W
- Impedance – 4 ohms
- Sound Pressure Level – 87dB / W at 1m
- Frequency Response – 73 – 22,000Hz
- Weight (w.Grille) / 1pc – 1.62lbs (0.73kg)
- Weight (w/o Grille) / 1pc – 1.39lbs (0.63kg)
- Magnet Mass – 7.8oz (220g)
- Mounting Depth – 1-15/16″ (49mm)
