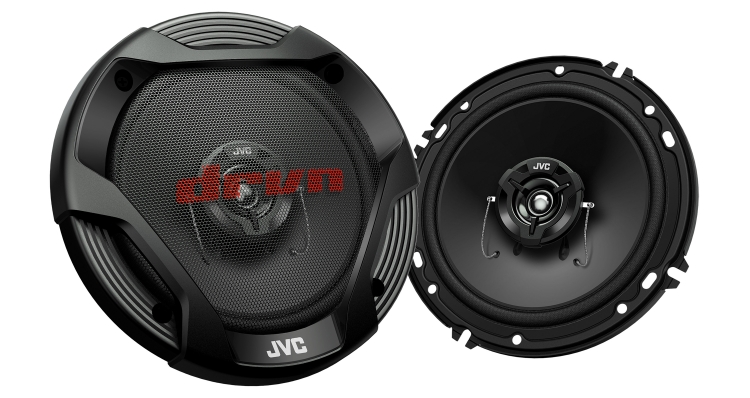

JVC DRVN CS-DR622 300w 6″- 6 1/2″ 2 way speakers:
16cm (6-1/2″) 2-Way Speakers / 300W Peak Power / 50W RMS
DR Series Speakers
Balanced Cone Tweeter with Neodymium Magnet
It provides detailed high range and smooth mid range.
Great Factory Replacement
Installable vehicle types are greatly increased thanks to its shorter height.
Horn Ring Sound Enhancer
Improves mid – higher frequency sound character and reproduces life-like sound.
Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.
Dimensions
-
CS-DR622
Woofer:
- Size – 6-1/2″ (16cm)
- Type – Cone
- Diaphragm – Polypropylene
- Surround – Hybrid Surround (Rubber Coated Cloth)
- Magnet – Ferrite
Tweeter:
- Size – 1″ (2.5cm)
- Type – Balanced Dome
- Diaphragm – Poly-Ether Imide
- Magnet – Neodymium
General:
- Power Handling Capacity (Peak Power) – 300W
- Power Handling Capacity (RMS) – 50W
- Impedance – 4 ohms
- Sound Pressure Level – 88dB / W at 1m
- Frequency Response – 76 – 24,000Hz
- Weight:
- Weight (w.Grille) / 1pc – 1.42lbs (0.64kg)
- Weight (w/o Grille) / 1pc – 1.26lbs (0.57kg)
- Magnet Mass – 6.7oz (190g)
- Mounting Depth – 1-3/4″ (44mm)
