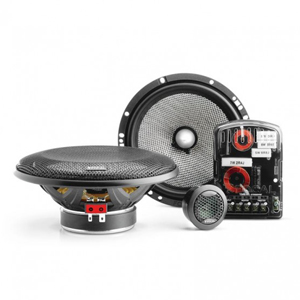

Focal 165 AS 6.5″ 2-WAY COMPONENT KIT
Out of stock
The Access 165 AS car audio 2-way component kit is of sufficiently high sensitivity to be directly connected to a car stereo. It has 3-position tweeter adjustment for optimal listening comfort. Accessories shipped with the tweeter enable multiple fitting options and finding the best sound stage.
Product Specifications:
Diameter: 61/2? (165mm)
Mounting depth: 25/8? (66mm)
Voice-coil diameter: 1? (25mm)
Voice-coil height: 07/16? (11mm)
Magnet: 31/3? (85mm)
Supplied with grille
Aluminium inverted dome tweeter
Separated crossover: 12/12dB/oct (4.8kHz),
DFS Cone
Max. power: 120W
Nom. power: 60W
Sensitivity (2.83V/1m): 92dB/oct
Frequency response: 60Hz-20kHz
Accessories: tweeter support, screw
$250
Out of stock
Related products
-
Component, Focal
Focal Auditor R-165 S2 2-Way Component Speakers
Specifications:
Diameter 6.5? (165mm)
Mounting depth 2-5/8? (66.5mm)
Voice-coil diameter 1? (25mm)
Voice-coil height 0-7/16? (11mm)
Magnet 3-1/3? (85mm)
Tweeter Silk/Aluminum
Cone Polypropylene
Separated pre wired crossover (12db/oct)
Max power 120W
Nom power 60W RMS
Sensitivity (2.83V/1m) 91.5dB
Frequency response 60Hz-20kHz
Accessories Supplied grillesSKU: n/a -
Component, Fusion
Fusion 6.5″ Component Speaker System
Specifications
Mounting Dimensions
Mounting Depth 65mm 2.6″ Mounting Diameter 140mm 5.5″ Product Specifications
Cone Material CURV Frequency Response 40Hz-22kHz Peak Power (Watts) 340 Rated Power (Watts) 120 Sensitivity (dB) 91 Thiele Small Parameters
Compliance (Cms) (?M/N) 582.45 Cone Area (Sd) (cm?) 128.68 D.C. Coil Resistance (Re) (Ohm) 3.2 Electrical Q (Qes) 0.495 Force Factor (Bl) (TM) 5.418 Free Air Resonance (Fs) 60 Mechanical Q (Qms) 2.989 Total Loudspeaker Q (Qts) 0.425 Voice Coil Impedance 4 Ohm Tweeter Specifications
Tweeter Type Titanium SKU: n/a -
Component, DD Audio
DD Audio EC6.5 6.5″ Component Set
The E Class 2-Way Component System is perfect for the listener who wants to instantly take their system from factory to fantabulous. This set offers high-end features and an outstanding sound that rivals much more expensive component sets.
Woofer:
The 6.5-inch Woofer features an injection molded poly cone, rubber surround , and rigid steel frame. For reduced inductance, extended high-frequency roll off , and increased efficiency the voice coils features a double slit former and the motor utilizes a copper pole cap . The soft parts are driven with a high flux 11 Oz ferrite magnet motor.Tweeter:
The 20-mm silk dome tweeter comes with flush-mount and surface-mount solutions.Crossover:
The crossover networks are built with premium components including Mylar capacitors, segmented air-core inductors and poly fuses for tweeter protection. Two selectable tweeter levels are provided for fine high-frequency tuning.Driver Size – in
Woofer 6.5 / Tweeter 20mm
Power Band – Watts
25-100
Coil Configuration
S4
Frequency Response – Hz
50-20k
Cutout Diameter – in
Woofer 5.60 / Tweeter 1.59
Mounting Depth – in
Woofer 2.45 / Tweeter 0.53
Shipping Weight – lbs
10LbsAny DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.
Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.
Copper Capped Pole Piece
As current flows through the voice coil, it generates its own magnetic field which interacts, or modulates the motors permanent magnet field. A shorting ring cancels these magnetic field changes and lowers inductance, extending the frequency range and reducing harmonic distortion.Aluminum – Double Slit Voice Coil Former
The aluminum former material acts as a heat sink, lowering the voice coil temperature. The double slits in the former break up and reduce magnetic eddy currents generated by the moving coil. The coil design works in conjunction with the copper capped pole piece to further reduce heat, inductance, and harmonic distortions.SKU: n/a -
6" x 9", Focal
Focal 690 AC 6X9″ 2-WAY COAXIAL KIT
The Access 690 coaxial kit has been designed to reproduce deep bass throughout your vehicle. It will be equally at home in your car’s doors or parcel shelf *. As with the other products in this range, its built-in filter means you can quickly connect your kit to a car stereo or power amplifier from our Performance range.
* depending on oem fittings
Specifications:
Diameter: 6×9? (164x235mm)
Mounting depth: 82mm
Voice-coil diameter: 13/16? (30mm)
Voice-coil height: 07/16? (11mm)
Magnet: 39/16? (90mm)
Aluminium inverted dome tweeter
DFS Cone
Integrated crossover: 6dB/oct (5kHz)
Max. power: 150W
Nom. power: 75W
Sensitivity (2.83V/1m): 91dB/oct
Frequency response: 50Hz-20kHzSKU: n/a -
Component, DD Audio
DD Audio DC6X9 D CLASS 6X9 COMPONENT SET
he D Class 6×9 Component set consists of high tech, high fidelity drivers designed for the listener wanting to go well beyond the standard factory upgrade.
Woofer:
Our focus on sound quality starts with precision motor assemblies. The machined magnet gaps driven with high energy strontium magnets provide strong output from a compact design. We incorporated distortion reducing copper shorting rings for flux modulation and inductance control. The aluminum mid woofer cones achieve wide bandwidth and efficient energy transfer to the air. The compressed rubber surrounds are durable and have been optimized for light weight to increase sensitivity.
Tweeter:
The tweeter side of the D Class component sets is our T2a 25mm ultra-light diaphragm tweeter. This new diaphragm is less than 0.003 of an inch thick; that’s almost nothing of a mm. This proprietary fabric is so thin it’s virtually see through, well, actually it is see through. The ultra-light dome is coupled to a low-distortion, neo motor with flush/surface mounting hardware and metal grill options.
Crossover:
The 2-way crossover features low distortion coils and metalized polypropylene caps that pass the source without degradation. The D Class components are purposefully built, enthusiast quality sets — everything you need for great sound and nothing you don’t.
SPECS
Driver Size – in Woofer 6×9 / Tweeter 25mm
Power Band – Watts 50-150
Impedance S4
Frequency Response – Hz 40-25k
dBSPL 90
Cutout Diameter – in 5.96 x 8.61
Mounting Depth – in 2.39
Shipping Weight – lbs 10Note: Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.
Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.
SKU: n/a
