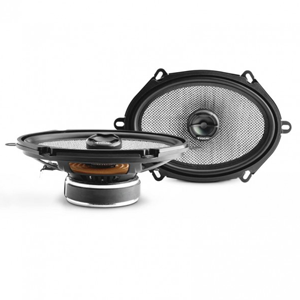

Focal 570 AC 5X7″ 2-WAY COAXIAL KIT
No interest, no fees.
That's it! We manage automatic weekly payments until you're paid off. Full purchase details can be viewed anytime online.
You will need
- To be over 18 years old
- Visa/Mastercard payment
- NZ drivers licence or passport
- First instalment paid today
or 4 fortnightly payments of $50 with More info
The Access 570 AC kit is specially designed to replace Ford?, Jaguar? and Mazda? oem audio installations. Its 5×7″ dimensions, specially designed for these vehicles, mean that installation is simplified. And its integral filter simplifies speaker connections: all that is needed is a simple connection to your car stereo.
Specifications:
Diameter: 5 x 7 (130 x 180mm)
Mounting depth: 59 .5mm
Voice-coil diameter: 1? (25mm)
Voice-coil height: 07/16? (11mm)
Magnet: 39/16? (85mm)
Aluminium inverted dome tweeter
DFS Cone
Integrated crossover: 6dB/oct (5kHz)
Max. power: 120W
Nom. power: 60W
Sensitivity (2.83V/1m): 89dB/oct
Frequency response: 65Hz-20kHz
$200
Related products
-
5" x 7", DD Audio
DD Audio DC5x7 D CLASS 5X7 COMPONENT SET
0 out of 5(0)The D Class 5×7 Component set consists of high tech, high fidelity drivers designed for the listener wanting to go well beyond the standard factory upgrade.
Woofer:
Our focus on sound quality starts with precision motor assemblies. The machined magnet gaps driven with high energy strontium magnets provide strong output from a compact design. We incorporated distortion reducing copper shorting rings for flux modulation and inductance control. The aluminum mid woofer cones achieve wide bandwidth and efficient energy transfer to the air. The compressed rubber surrounds are durable and have been optimized for light weight to increase sensitivity.
Tweeter:
The tweeter side of the D Class component sets is our T2a 25mm ultra-light diaphragm tweeter. This new diaphragm is less than 0.003 of an inch thick; that’s almost nothing of a mm. This proprietary fabric is so thin it’s virtually see through, well, actually it is see through. The ultra-light dome is coupled to a low-distortion, neo motor with flush/surface mounting hardware and metal grill options.
Crossover:
The 2-way crossover features low distortion coils and metalized polypropylene caps that pass the source without degradation. The D Class components are purposefully built, enthusiast quality sets — everything yo u need for great sound and nothing you don’t.
SPECS
Driver Size – in Woofer 6×9 / Tweeter 25mm
Power Band – Watts 50-150
Impedance S4
Frequency Response – Hz 40-25k
dBSPL 90
Cutout Diameter – in 4.96 x 7.16
Mounting Depth – in 2.29
Shipping Weight – lbs 10Note: Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.
Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.
SKU: n/a -
Component, Focal
Focal 165 AS 6.5″ 2-WAY COMPONENT KIT
0 out of 5(0)The Access 165 AS car audio 2-way component kit is of sufficiently high sensitivity to be directly connected to a car stereo. It has 3-position tweeter adjustment for optimal listening comfort. Accessories shipped with the tweeter enable multiple fitting options and finding the best sound stage.
Product Specifications:
Diameter: 61/2? (165mm)
Mounting depth: 25/8? (66mm)
Voice-coil diameter: 1? (25mm)
Voice-coil height: 07/16? (11mm)
Magnet: 31/3? (85mm)
Supplied with grille
Aluminium inverted dome tweeter
Separated crossover: 12/12dB/oct (4.8kHz),
DFS Cone
Max. power: 120W
Nom. power: 60W
Sensitivity (2.83V/1m): 92dB/oct
Frequency response: 60Hz-20kHz
Accessories: tweeter support, screwSKU: n/a$250 -
5", Focal
Focal 130 AC 5″ 2-WAY COAXIAL KIT
0 out of 5(0)The coaxial Access 130 CA kit offers real dynamism for your sounds. With their 130 mm diameter, these speakers develop a rated power of 50 W and can be fitted into your car both front and back.
Product Specifications:
Diameter: 5? (130mm)
Mounting depth: 21/8? (54.5mm)
Voice-coil diameter: 1? (25mm)
Voice-coil height: 07/16? (11mm)
Magnet: 31/3? (85mm)
DFS Cone
Aluminium inverted dome tweeter
Integrated crossover 6dB/oct (4.7kHz)
Max. power: 100W
Nom. power: 50W
Sensitivity (2.83V/1m): 91dB/oct
Frequency response: 65Hz-20kHz
Supplied with grillSKU: n/a$175 -
6", Focal
Focal 165 AC 6.5″ 2-WAY COAXIAL KIT
0 out of 5(0)The Access 165 AC coaxial kit puts Focal sound in your car with no fuss. Measuring 165 mm (6?”) in diameter and with 60 W rated power, this kit is easily fitted for an effective, responsive audio system.
Product Specifications:
Diameter: 61/2? (165mm)
Mounting depth: 21/2? (63.5mm)
Voice-coil diameter: 1? (25mm)
Voice-coil height: 07/16? (11mm)
Magnet: 31/3? (85mm)
DFS Cone
Aluminium inverted dome tweeter
Integrated crossover 6dB/oct (4.7KHz)
Max. power: 120W
Nom. power: 60W
Sensitivity (2.83V/1m): 92dB/oct
Frequency response: 60Hz-20kHz
Supplied with grillSKU: n/a$199
