Android™ Music Playback
Music playback via USB is possible with Android phones or tablets (version 4.1 or later). Not only does it let you play back audio files stored on an Android device*, it also supports music streaming. Use the receiver’s keys to control operations such as Play, Stop, Pause, and Skip all while keeping the device charged.
*Some Android devices may not fully support Android Open Accessory (AOA) 2.0.*JVC Music Play app
For more information, visit www.jvc.net/car/app/jmp/
Internet Radio/Digital Radio
Spotify Control (Android/iPhone)
Listen to Spotify from your smartphone with smooth control on the receiver via USB or Bluetooth connection for iPhone, and via Bluetooth for Android devices.
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1 kHz/16 bit to 192 kHz/24 bit. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Space Enhancement is a virtual surround technology using 2 speakers. Simply select the vehicle size, and the receiver automatically adjusts the sound effectively.
This function boosts the low frequencies which can be lost during compression to MP3 or AAC.
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth® Wireless Technology
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
Bluetooth AVRCP1.5 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
Bluetooth Hands-Free Profile 1.6
HFP 1.6 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.
iPhone® Bluetooth Automatic Pairing
Just connect your iPhone via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
Low Battery Information New
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.
2-Line VA LCD Display
Equipped with VA (Vertical Alignment) LCD panels that offer a broader angle of view and better visibility. The 2-line display provides more information with animation effects.
You can choose illumination colors from one of 49 presets or customize your own color by adjusting the intensity of RGB (Red, Green, and Blue).
Music Sync. Effect New
Changes illumination patterns according to the rhythm of the music. Illumination key colors can be preset the way you like.
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
Remote Control App
Control the receiver’s source directly from the smartphone using simple finger gestures with “JVC Remote” app* (now available for both iOS and Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.*JVC Remote App
For more information, visit www.jvc.net/car/app/jvc_remote/
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
- Display Type
- 2-Line VA LCD Display
- LCD Color
- Key Color
- Variable Color
- Music Sync. Effect
- Spanish Text Display Compatible
- Auto Dimmer
- Brightness Control
- MP3 Compatible with Tag
- WMA Compatible with Tag
- WAV Compatible with Tag
- AAC Compatible with Tag
- FLAC Compatible with Tag
- USB ( Up to 96kHz/24bit )
- Built-in Bluetooth
- Yes (Ver 3.0, Wired-Mic included)
- Hands Free Call
- Yes (HFP 1.6 wideband speech)
- 2 Phones Full-Time Connection
- Audio Streaming & Control (A2DP, AVRCP)
- 5 BT-Audio Connection [JVC Streaming DJ]
- Voice Dialing (voice recognition compatible mobile phone required)
- Phone Book Access Profile (PBAP)
- iPhone & Android Automatic Pairing
- Yes (iPhone only)
- Low Battery Information
- Android Music Playback
- Yes (AOA 2.0)
- Spotify Control
- Yes (via Bluetooth(R))
- iPod/iPhone Music Playback
- Spotify Control
- Yes (via USB or Bluetooth(R))
- USB Power Supply
- Yes (1.5A)
- Drive Change Mode for Mass Storage Class

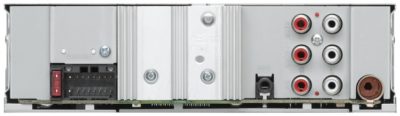

Inputs and Outputs
- AUX Input
- 1 (Front)
- Line Output Terminals (Pair)
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level
- Subwoofer Output with Level/Frequency Control
- Yes (Level -50 – +10)
- Subwoofer Output Level
- Radio Data System (RDS)
- Tuner Type
- Digital Processing Tuner
- Preset Stations
- 18FM + 6AM + 12SW
- Strong Station Memory (for FM)
- Radio Timer
- Yes (Once/Daily/Weekly)
- Tuner Preset Memory (for power disconnection)
- Frequency Range
- 87.5 – 108.0MHz
- Frequency Range
- (MW) 531 – 1,602kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)
- Maximum Power Output
- 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD)
- 22W x 4
- MOS-FET Amplifier
- Subwoofer Direct Connection (Mono Lch)
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (11-Preset)
- Bass Boost
- Loudness Control
- Yes (Off/Low/High)
- High-Pass Filter/Low-Pass Filter
- K2 Technology
- Time Alignment
- Space Enhancement
- Sound Response
- Sound Lift
- Volume Link EQ
- drvn EQ
- Short Body
- Back Up Memory
- Detachable Face Panel
- Carrying Case
- Wireless Remote Control
- Steering Remote Control Ready
- Remote Control Application
- Dimensions (W x H x D)
- Installation Size
- 182 x 53 x 100mm
- Unit weight in individual package
Available functions depend on mobile phone.
Android (Ver 4.1 and above). Some Android devices may not fully support Android Open Accessory (AOA) 2.0.
