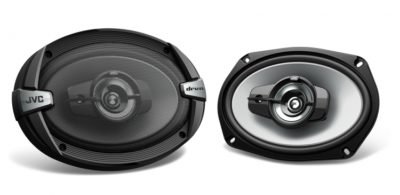

JVC CS-DR693 DRVN 6″x 9″ 3 way speakers 500W peak:
-
-
Picture(7)
-
DR Series Speakers
Full Cover Grill Design
Protects the woofer and tweeter in open installations.
Horn Ring Sound Enhancer
Improves mid – higher frequency sound character and reproduces life-like sound.
PP + Mica Cone
Lightweight PP + Mica Cone Material provides highly responsive, clear and undistorted sound.
-
CS-DR693
Woofer
- Size
- 15 x 23 cm (6” x 9”)
- Diaphragm
- PP
- Surround
- Cloth
- Magnet
- Ferrite
Midrange
- Size
- 6.6 cm (2-5/8”)
- Diaphragm
- Cone
- Magnet
- Ferrite
Super Tweeter
- Size
- 1.5 cm (19/32”)
- Diaphragm
- Dome
General
- Power Handling Capacity (Peak Power)
- 500W
- Power Handling Capacity (RMS)
- 70W
- Impedance
- 4 ohms
- Sound Pressure Level
- 86 dB
- Frequency Response
- 54 – 18,000Hz
- Weight
- Weight (w.Grille) / 1pc
- 1.1kg (2.5lbs)
- Weight (w/o Grille) / 1pc
- 1.0kg (2.3lbs)
- Magnet Mass
- 340g (12.0oz)
- Mounting Depth
- 79 mm (3-1/8″)
