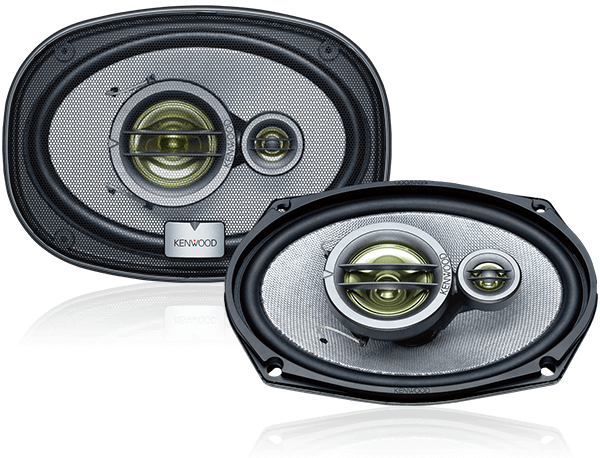

Kenwood KFC-HQ718 7 X 10″ 3-way Speakers
| Speaker Tech-Spec | KFC-HQ718 |
|---|---|
| Peak Input Power | 320W |
| RMS Input Power | 80W |
| Size | 7 x 10 inch |
| Tweeter Design | PEI Balanced Dome |
| Tweeter Magnet Composition | Ferrite |
| Woofer Magnet Composition | Ferrite |
| Nominal Impedance | 4ohms |
| Frequency Response | 22Hz – 33kHz |
| Sensitivity (dB/W at 1m) | 93dB |
| Mounting Depth | 82mm |
These speakers do not fit directly into a standard 6×9-inch cutout.
Size Difference:
-
- The KFC-HQ718 is a larger 7×10-inch speaker.
- The basket is too wide and too deep to drop into a standard 6×9 opening.
Fitting options:
- Cut Metal/Plastic: You must physically enlarge the existing 6×9 hole.
- Use Spacers: Install a 7×10 wooden or plastic spacer ring on top of the hole to lift the speaker up.
- Check Depth: Ensure you have at least 82mm of clearance below the mounting surface.
