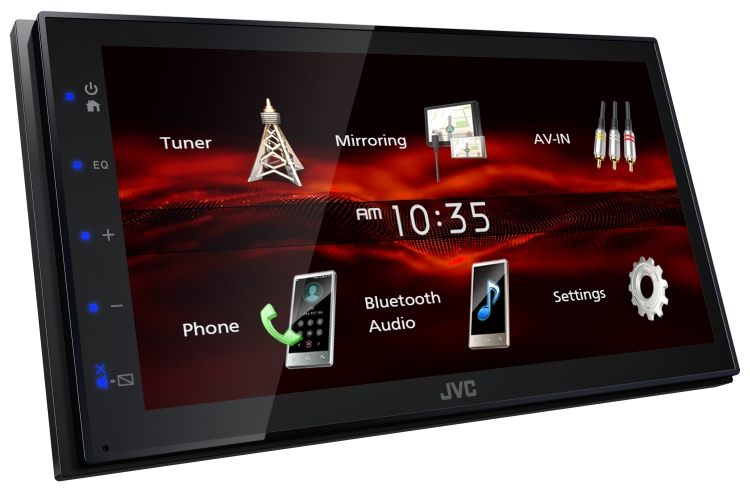

JVC KW-M180BT 6.8″ Bluetooth Touchscreen Receiver

Description

JVC KW-M180BT 6.8″ Bluetooth Touchscreen Receiver:

Digital Media Receiver featuring 6.8″ WVGA Capacitive Monitor / USB Mirroring for Android™ / Bluetooth® / 13-Band EQ / Short Chassis / Fast Bootup

Smartphone Integration

USB Mirroring for Android™

Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.

How to USE

Step-1 : Simply download the free Mirroring for JVC app.

Step-2 : Connect your smartphone via Bluetooth and USB.

Mirroring OB for JVC App

Bluetooth^® Wireless Technology

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.6 Wideband Speech

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.5 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

Sound Optimization

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

General

Fast Bootup

Thanks to the new fast bootup feature, the Receiver is ready to use shortly after powering on.

Capacitive Touchscreen

Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.

Various Formats Compatible

Supports a variety of file formats for audio and video playback.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Waterproof design
1/4″ color CMOS sensor with effective 380,000 pixels
Flexible mounting bracket included
Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
Weight: 21g (Camera only)

Direct OEM Steering Remote Function

Description of Rear Terminals

Technical Specifications

KW-M180BT

Monitor

Screen Size – 6.8″Wide VGA

Touch Panel – Capacitive

Key Illumination Color – Blue

Dimmer – Yes

Multilingual Display – Yes[2]

Media Playback

MP3 Compatible with Tag – USB

WMA Compatible with Tag – USB

WAV Compatible with Tag – USB

AAC Compatible with Tag – USB

FLAC Compatible with Tag – USB

H.264 Compatible – USB

MPEG 1/2 Compatible – USB

MPEG 4 Compatible – USB

MKV Compatible – USB

Bluetooth Control

Built-in Bluetooth[1] -Yes (Wired-Mic included)

Hands Free Call – Yes (HFP1.6)

Audio Streaming & Control (A2DP, AVRCP) – Yes

Supported Audio Formats – AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required) – Yes

Phone Book Access Profile (PBAP) – Yes

Android Control

Mirroring for Android – Yes (via USB)

USB

USB Port – x 1 (High speed)

Position – Rear

USB Power Supply – Yes (1.5A)

Radio Tuner

Radio Data System – Yes

Preset Stations – 30 (6ch x 5band)

FM

Frequency Range – 87.5-108.0MHz

AM

Frequency Response – 531-1,611kHz

Audio

Maximum Power Output (Front & Rear) – 45W x 4

EQ – Yes (13-Band Graphic EQ)

Preset EQ – Yes (7Preset + 3user)

Bass Boost: Yes

High-Pass Filter/Low-Pass Filter – Yes/Yes

Time Alignment – Yes

Inputs and Outputs

AV Input – RCA x 1

Video Out – RCA x 1

Rear view camera Input – Yes

Line Output Terminals – 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)

Pre-output Level/Impedance – 2V / 10k ohms

Subwoofer Output with Level/Frequency Control – Yes

General

Face Type – Fixed

Short Chassis – Yes (75mm)

Wireless Remote Control Type – Ready (RM-RK258 required)

Steering Remote Control Ready – Yes

Learning Direct OEM Remote – Yes

ISO Connector – Yes
