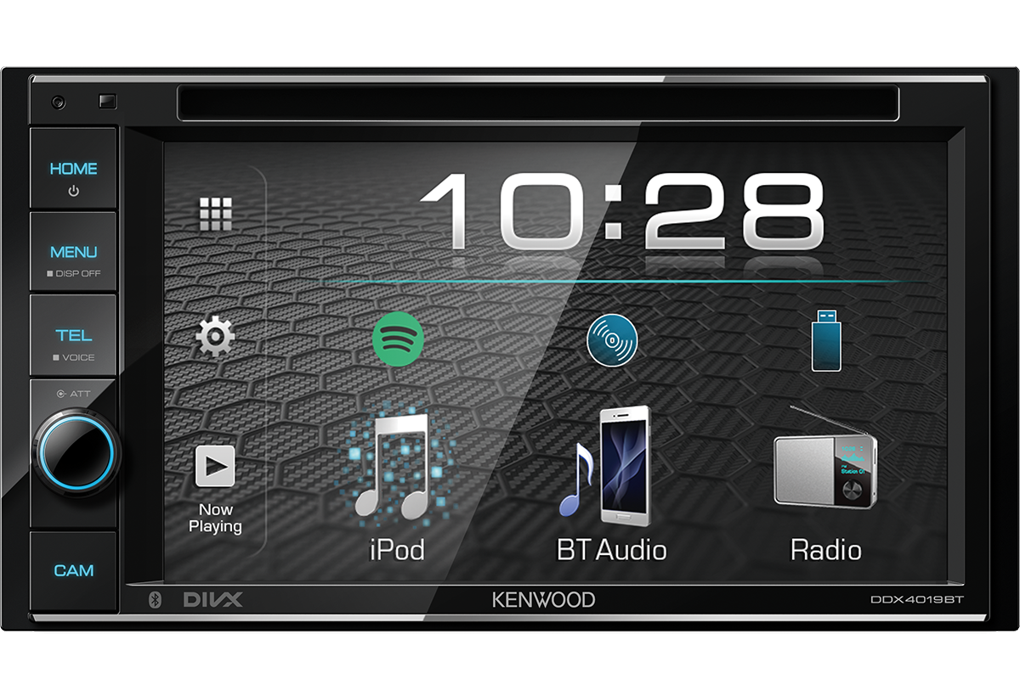

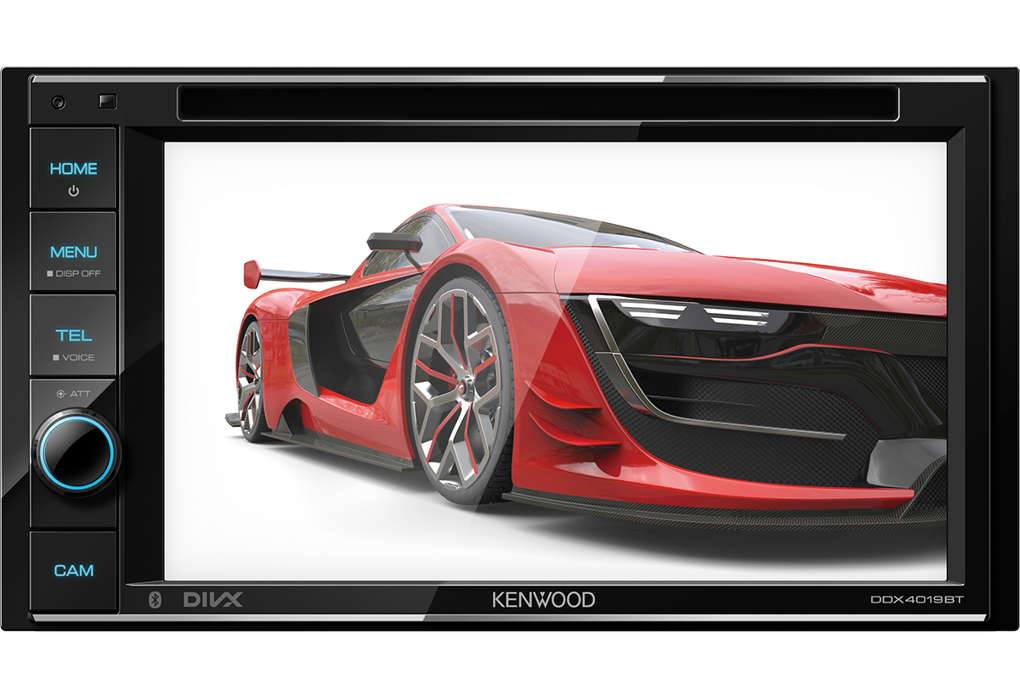

Kenwood DDX4019BT DVD/CD/USB Receiver with Bluetooth

10 weekly payments of $43.90 learn more

or 4 fortnightly payments of $110 with Afterpay More info

Key Features

6.2 Wide VGA LCD Touch Screen
Bluetooth Built-in for Handsfree & Audiostreaming
4 x 50W Max output Power
3 RCA High-voltage (4.0V) Preouts
Built-in DSP, DTA & 13-band EQ
iPod/iPhone & Android Music Playback
Kenwood Remote App & Music Mix App Ready
Spotify App Ready
MP3, WMA, AAC, WAV & FLAC Audio Playback
MPEG1, MPEG2, DivX, Video File Playback

General Features

DIN Size 2 DIN
Security Code Function ( user set) Yes, (4 digits)
On Screen Display (OSD) Operation Yes
Smooth GUI Yes
Key Illumination Variable color
Rotary Encoder & Control Knob Yes
Touch sensor Yes
Installer Memory Yes
Back-up Memory Yes
Attenuator with Smooth Volume Return Yes
Optional IR remote controller Yes, (KNA-RCDV331)
Digital Clock (24H) Yes
Bluetooth unit built-in Yes
Made for iPod Yes
Firmware upgreadable Yes

Monitor Features

Screen Type 6,2″ Resistive touch panel
High Resolution VGA Display Yes
LCD type 6,2 inch Wide VGA
LCD backlight LED (Variable Colour)
Display Mode 4 Mode (Full(default)/Just/Auto/Normal)
Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast/Black Level/Sharpness
Dimmer function Manual/Sync
Dimmer Level Auto/On/Off
Touch Panel Clear resistive
Display Type Glare
Mechanism type Fixed
LCD viewing angle control 5 steps (0° – 20°)
NTSC/PAL judge Yes (Auto)
Display Off Mode Yes

Multimedia GUI Features

Variable Colour illumination Yes
Software updates (SoC) by USB
Graphics Type Graphics
Demonstration Mode Yes
Top Menu Customize Yes
Background Customize preset x 9 + user set x 1
Screen Capture Yes
R-CAM interrupt Yes
R-CAM Caution On Screen Display Yes
R-CAM Parking Guide Lines Yes
Menu text in selectable language ► English (Default)
► Spanish
► French
► German
► Italian
► Dutch
► Russian
► Portuguese
► Chinese (Simplified)
► Chinese (Traditional)
► Korean
► Thai
► Turkish
► Arabic
► Persian
► Hebrew
► Greek
► Malasian
► Indonesian
► Polish
► Czech
► Hungarian

Tuner Features

Station Select Manual / Preset
FM Reception Yes
AM (MW/LW) Reception Yes
Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
Up/Down Seek/Scan Yes
Automatic Memory Entry (AME) Yes
FM Stereo / Mono Selector Yes
Radio Data System Yes
Radio Text Plus Yes
Traffic Information Yes
Local search Yes
AF Regional Selectable: AF/AF Reg/OFF
Enhanced Other Networks Function (EON) Yes
Program Type Function (PTY) Yes
PTY News Off/0/10/20/…/80/90min

Bluetooth General Features

Hands Free Profile (HPF) V1.6
Max num. of regist. phones for HFP 5 phones
2 phones fulltime connection Yes
Advanced Audio Distribution Profile (A2DP) Yes
High Quality Audio Streaming SBC/AAC
Serial Port Profile (SPP) Yes
Simple Secure Pairing (SSP) Yes
Phonebook Access Profile (PBAP) Yes
Wireless Music Browsing (AVRCP 1.5) Yes
Easy pairing function Yes
iPhone automatic pairing via USB Yes
Spotify App Link Iphone & Android
KENWOOD Remote App Ready Yes
KENWOOD Music Mix Support Yes
Catchphone / Call Waiting Yes
Private mode Yes
Noise Canceller Yes
Echo Canceller Yes
Phone device status display Yes
Audio device status display Yes
Signal strength display Yes
Remaining battery display Yes
High-quality noise canceling microphone included
Bluetooth firmware upgradeable Yes
* depends on phone model/make & Kenwood unit

CE_Playable Audio file

AAC (*.m4a) files are playable CD/USB
AAC (*.aac) files are playable USB
MP3 files are playable CD/USB
WMA (.wma) files are playable CD/USB
WAV (.wav) files are playable CD/USB
FLAC files are playable USB

CE_Playable Video file

MPEG1/2 files are playable CD/USB
JPEG files are playable CD/USB
DivX CD/USB

DVD-Features

DVD Region Code 2
DVD-Video Yes
VCD Compatible Yes
DVD±R/RW Compatible Yes
CD-DA Yes
CD-R/RW Compatible Yes
CD-DA Repeat/Scan/Random play Yes
CD Text yes
Jacket Picture with Tag Yes
Supported audio files MP3, WMA, AAC(m4a), WAV
Supported video files DivX, MPEG1, MPEG2
Supported image files JPEG
Zoom Control (DVD/VCD) Yes
Digital/Analog Converter 24 bit
Time Code Display Yes
Skip/Search Yes
Direct Track Acces by Remote
Random Play Disc/Folder
Repeat Play Folder/File
List Access Yes
Time Code Display Yes
Direct Search Yes
Resume Play / Last Position Memory Yes
On screen display (OSD) Yes

USB Features

Rear USB Terminal Yes
USB Type 2.0 High speed
Drive Change Yes
Kenwood Music Control App for Android Yes
Spotify App link Iphone
Android Open Accessory support (AOA) V 2.0
Supported audio files MP3, WMA, AAC(m4a), AAC(aac), WAV, FLAC
Supported video files DivX, MPEG1, MPEG2
Supported image files JPEG
JPEG slide show Yes
Repeat/Scan/Random search Yes
Repeat / Random Play Yes
Resume play Yes
Time code display Yes
1,5A Charge Capability for Smartphone (BC 1.2). Yes

iPod Features

Connection via: USB / Bluetooth
Made for iPod & iPhone * Yes
Music playback Yes
Video playback Yes
Album art support Yes
Music library search Yes
Alphabet search Yes
Skip search Yes
Related search Yes
Direct Search Yes
My playlist Yes
iPod EQ Mode Yes
Control by hand Yes
App & iPod control mode Yes
iPod Accessory Protocol (iAP) over Bluetooth
High speed search Yes
Reverse browsing Yes
Voice Control using Siri. Yes
Bluetooth Auto Paring for iPhone Yes
Battery charge + power control Yes
* Always update to latest Apple firmware
** Apple Lightning – 30 pin adapter required
*** In case of Apple Unit with Lightning Connector only Audio playback Yes

Audio features

Max. Output Power (MOSFET Power IC) 4 x 50W
Pre-out 3RCA: Front/Rear/Subwoofer
Pre-out Output Level 4V
Volume Offset Yes
Low Pass Filter (LPF) Yes
Subwoofer Phase Control Yes
Subwoofer Reference Level Adj. Yes
High Pass Filter (HPF) Yes
Balance/Fader Control Yes
Loudness Control Yes
Bass Boost Yes
Att.(-20dB) with smooth Volume Return Yes
Drive Equalizer / Drive EQ Yes
Equalizer Yes, 13-band
Digital Sound Processor (DSP) Yes
Speaker Select Yes

Multimedia DSP Features

Position Control Yes
Position Preset ► All
► Front left
► Front right
► Front all
Position Cabin Size Yes, ► Off
► Compact car
► Sedan
► Station car
► Minivan
► Sport-utility vehicle (SUV)
► Passenger van
Graphic Equalizer 13 bands
G-EQ KBS Yes, 8 x Preset + 4 x User set
G-EQ manual setting Yes
G-EQ adjustable level Yes, +9dB / -9dB
Time Alignment 0cm ~ 610cm
High Pass Filter (HPF) Yes (Front/Rear/Center)
HPF Cut Off Frequency 14
HPF Cut Slope Level 4 steps
Low Pass Filter (LPF) Yes (Non-Fading)
LPF Cut Off Frequency 14
LPF Cut Slope Level 4 steps
Cross-over Yes
3-Way X’Over Yes
Source DSP Memory Yes
Speaker Size Control Yes
Car type control Yes
Channel Level Control Yes
Space Enhancer Yes
Supreme Yes
Sound Realizer Yes
Loudness Yes
Stage EQ Yes
Bass Boost Yes
Drive EQ Yes

Video Features

Audio Video Output Yes, Video only (RCA)
Audio/Video Input Yes, Mini-jack, non switchable
Video-In for Rear-view Camera 1 dedicated NTSC video input (RCA)
Detection Mode Rear View Camera Reverse sensor wire
Parking Guide Line Yes
DVD Menu Direct Touch Operation Yes

Connectivity

iPod Digital Connection (1 Wire) Yes
USB interface 1 x rear, pigtail (1m)
OEM Wired Remote Control ready Yes
Programmable OEM Steeringwheel Remote Function Yes
DC-Cord Mitsumi to ISO
Parking sensor (handbrake) wire Yes
Power Control (P.CON) wire Yes
2-way (Tel/Navi) mute wire Yes
Dimmer control wire Yes
AV-Input (Non Switchable) (Mini-jack)
Video Out 1 X RCA (DVD/USB/AV-in)
Reverse sensor wire Yes
Rear View Camera Input Dedicated RCA Video-in
Amplifier pre-out RCA: Front/Rear/Subwoofer
FM Antenna Input JASO connector
External microphone input 3,5mm mini-jack

Tuner Specifications

FM range: 87.5Mhz – 108MHz (50Khz step) Yes
FM Usable Sensitivity 0.56μV/75ohm (S/N 6.2dBf)
FM Quieting Sensitivity 1.58μV/75ohm (S/N 15.2dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 68dB
FM Selectivity(DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 40dB
MW range: 531kHz – 1611kHz (9kHz step) Yes
MW Usable Sensitivity 28.5μV
LW range: 153kHz – 279kHz (9kHz step) Yes
LW Usable Sensitivity 45μV

Bluetooth specifications

Technology Bluetooth V3.0
Frequency 2.402 – 2.48 GHz
Output power +4dBm(max), 0dBm (AVE) power class 2
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP) Yes, V 1.6
Serial port profile (SPP) Yes, V 1.2
Service discovery protocol (SDP) Yes
Advanced audio distribution profile (A2DP) Yes, V 1.3
Audio Codec SBC/AAC
Audio/Video remote control profile (AVRCP) Yes, V 1.5
Generic access profile (GAP) Yes
Phonebook access profile (PBAP) Yes, V 1.2

DVD Specifications

D/A Converter 24 bit
MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2
MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2
DivX Decoder DivX with MP3, Dolby Digital Audio Format
JPEG Files Yes
Audio decoder Linear PCM/Dolby Audio/MP3/WMA/WAV/AAC(.m4a)
MP3 Decoder Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder Compliant with Windows Media Audio
WAV Decoder RIFF waveform Audio Format (only for LinearPCM)
AAC Decoder “.m4a” file encoded by AAC-LC format
Wow & Flutter Below Measurable Limit
Freq. Resp. (96kHz Sampling) 20Hz ~ 22kHz
Freq. Resp. (48kHz Sampling) 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling) 20Hz ~ 20kHz
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 90dB (1kHz)
Dynamic Range 90dB
Disc Format DVD-Video/Video-CD/CD-DA
Sample Frequency 44.1kHz/48kHz/96kHz
Quantifying bit number 16/20/24bit

USB Specifications

USB Version compatibility USB 2.0 High Speed
File System FAT 16/32
Maximum Supply current 1500mA
D/A Converter 24bit
MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2
MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2
DivX Decoder
JPEG Files Yes
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode
AAC Decode “m4a” & “aac” file encoded by AAC-LC format
WAV Decode Linear – PCM Files
flac Decode FLAC files up to 96kHz/24bit

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 22W x 4
Preout Level 4000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
Graphical Equalizer 13-Band
G. EQ. Frequency (Hz) 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
G. EQ. Gain (dB) +/- 9dB
High Pass Filter Frequency (Hz) Through/50/60>>>/180/220
Low Pass Filter Frequency (Hz) 50/60/80/100/120/Through
Subwoofer Level (dB) -50 dB to +10dB

Video Specifications

Color System of External Video Input NTSC/PAL
External video input level (mini-jack) 1 Vpp / 75 Ohm
External audio max. input level (mini-jack) 2 Vpp / 25 kOhm
Video input level (RCA) 1 Vpp, 75 Ohms
Video Output Level (RCA) 1 Vpp / 75 Ohm

Monitor Specifications

Screen size (Diagonal) 6.2 Inches Wide
Screen Size (WxH) 137.5 x 77.2mm
Display system Transparent TN LCD Panel
Drive system TFT Active Matrix System
Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels 99.99%
Pixel arrangement RGB Striped
Back lighting LED (Light Emitting Diode)

General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 178 x 100 x 162mm
Weight, inclu. sleeve & escutcheon 2 kg
Operation Temperature Range -10°C ~ 60°C

Accessories

Release keys 2 pieces
Escutcheon Yes
Installation Sleeve Yes
DC cord (Mitsumi to ISO) 25 cm
Handsfree Microphone with 3 m cable
Multi-Language Instruction Manual Included
Manuals Downloadable Yes

$439 $549

  • Key Features

    6.2 Wide VGA LCD Touch Screen
    Bluetooth Built-in for Handsfree & Audiostreaming
    4 x 50W Max output Power
    3 RCA High-voltage (4.0V) Preouts
    Built-in DSP, DTA & 13-band EQ
    iPod/iPhone & Android Music Playback
    Kenwood Remote App & Music Mix App Ready
    Spotify App Ready
    MP3, WMA, AAC, WAV & FLAC Audio Playback
    MPEG1, MPEG2, DivX, Video File Playback



Categories: ,

Related products

SHOPPING CART

close
