Fusion 6.5″ Component Speaker System
or 4 fortnightly payments of $50 with
More info
Specifications
Mounting Dimensions
| Mounting Depth | 65mm 2.6″ |
| Mounting Diameter | 140mm 5.5″ |
Product Specifications
| Cone Material | CURV |
| Frequency Response | 40Hz-22kHz |
| Peak Power (Watts) | 340 |
| Rated Power (Watts) | 120 |
| Sensitivity (dB) | 91 |
Thiele Small Parameters
| Compliance (Cms) (?M/N) | 582.45 |
| Cone Area (Sd) (cm?) | 128.68 |
| D.C. Coil Resistance (Re) (Ohm) | 3.2 |
| Electrical Q (Qes) | 0.495 |
| Force Factor (Bl) (TM) | 5.418 |
| Free Air Resonance (Fs) | 60 |
| Mechanical Q (Qms) | 2.989 |
| Total Loudspeaker Q (Qts) | 0.425 |
| Voice Coil Impedance | 4 Ohm |
Tweeter Specifications
| Tweeter Type | Titanium |
$199
While stocks last…
Related products
-
Component, Fusion

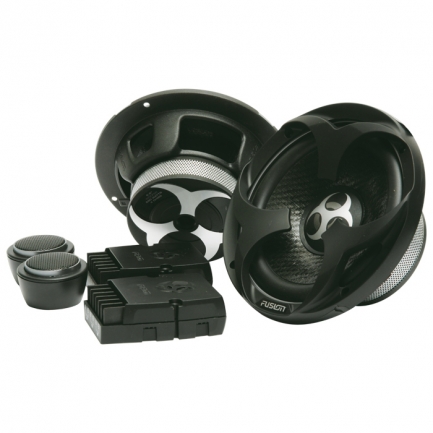

Fusion PF-CM650 6.5″ Component Speakers
Specifications
Crossover Specifications
Crossover Type 2nd Order Mounting Dimensions
Mounting Depth 60mm (2-3/8?) Mounting Diameter 132mm (5-1/4?) Product Specifications
Basket Steel Frame Cone Material IMPP Frequency Response 29Hz ? 30kHz Peak Power (Watts) 280 Rated Power (Watts) 50 Sensitivity (dB) 89 Surround Material PU Thiele Small Parameters
Compliance (Cms) (mm/N) 0.628 Cone Area (Sd) (cm?) 118.82 D.C. Coil Resistance (Re) (Ohm) 3.10 Diaphragm Mass (Mmd) (g) 12.965 Electrical Q (Qes) 0.623 Force Factor (Bl) (TM) 4.823 Free Air Resonance (Fs) (Hz) 54.3 Mechanical Q (Qms) 4.570 Total Loudspeaker Q (Qts) 0.548 VAS (CuFt) 0.4432 VAS (L) 12.5501 Voice Coil Impedance 4 Ohm Tweeter Specifications
Tweeter Type Silk Dome SKU: n/a -
Component, DD Audio
DD Audio CC6.5 A 6.5″ High Quality Component Set
Audibly Refined| 6.5″ High Quality Component Set
The C Class 2-Way Component System is the perfect balance of high-fidelity refinement and value.
Mid-Woofer
The 6.5-in mid-woofer features a coated paper cone that provides warm tonal characteristics with added environmental element resistance for the mobile environment. The surround is made of a lightweight rubber compound that adds durability without sacrificing any sound. For the frame, we used a sexy low resonance cast aluminum frame. For reduced inductance, extended high-frequency roll off , and increased efficiency the voice coils feature a double slit former and the motor utilizes a copper pole cap . The soft parts are driven with a high flux 17 Oz ferrite magnet motor.Tweeter
The 25-mm silk dome tweeter features a vented back for a wider/smoother frequency response.Crossover
The Crossover networks are built with premium components, including Mylar capacitors, segmented air-core inductors and poly fuses for tweeter protection. Three selectable tweeter levels are provided for fine high-frequency tuning.Driver Size – in
Woofer 6.5 / Tweeter 25mm
Power Band – Watts
60-180
Impedance
S4
Frequency Response – Hz
50-20k
Cutout Diameter – in
Woofer 5.73 / Tweeter 1.65
Mounting Depth – in
Woofer 2.67 / Tweeter 0.47
Shipping Weight – lbs
10Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.
Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.
Copper Capped Pole Piece
As current flows through the voice coil, it generates its own magnetic field which interacts, or modulates the motors permanent magnet field. A shorting ring cancels these magnetic field changes and lowers inductance, extending the frequency range and reducing harmonic distortion.Aluminum – Double Slit Voice Coil Former
The aluminum former material acts as a heat sink, lowering the voice coil temperature. The double slits in the former break up and reduce magnetic eddy currents generated by the moving coil. The coil design works in conjunction with the copper capped pole piece to further reduce heat, inductance, and harmonic distortions.SKU: n/a -
Media Receivers, Fusion
Fusion Apollo SRX400 Marine Receiver
Welcome to a new era of marine audio entertainment, crafted and engineered by Apollo – the God of Music.
The Apollo Series combines engineering and design never seen before in the marine industry, forever changing the face of marine audio entertainment and becoming the standard by which all others will be shaped.
SKU: n/a -
Component, DD Audio
DD Audio EC6.5 6.5″ Component Set
The E Class 2-Way Component System is perfect for the listener who wants to instantly take their system from factory to fantabulous. This set offers high-end features and an outstanding sound that rivals much more expensive component sets.
Woofer:
The 6.5-inch Woofer features an injection molded poly cone, rubber surround , and rigid steel frame. For reduced inductance, extended high-frequency roll off , and increased efficiency the voice coils features a double slit former and the motor utilizes a copper pole cap . The soft parts are driven with a high flux 11 Oz ferrite magnet motor.Tweeter:
The 20-mm silk dome tweeter comes with flush-mount and surface-mount solutions.Crossover:
The crossover networks are built with premium components including Mylar capacitors, segmented air-core inductors and poly fuses for tweeter protection. Two selectable tweeter levels are provided for fine high-frequency tuning.Driver Size – in
Woofer 6.5 / Tweeter 20mm
Power Band – Watts
25-100
Coil Configuration
S4
Frequency Response – Hz
50-20k
Cutout Diameter – in
Woofer 5.60 / Tweeter 1.59
Mounting Depth – in
Woofer 2.45 / Tweeter 0.53
Shipping Weight – lbs
10LbsAny DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.
Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.
Copper Capped Pole Piece
As current flows through the voice coil, it generates its own magnetic field which interacts, or modulates the motors permanent magnet field. A shorting ring cancels these magnetic field changes and lowers inductance, extending the frequency range and reducing harmonic distortion.Aluminum – Double Slit Voice Coil Former
The aluminum former material acts as a heat sink, lowering the voice coil temperature. The double slits in the former break up and reduce magnetic eddy currents generated by the moving coil. The coil design works in conjunction with the copper capped pole piece to further reduce heat, inductance, and harmonic distortions.SKU: n/a
